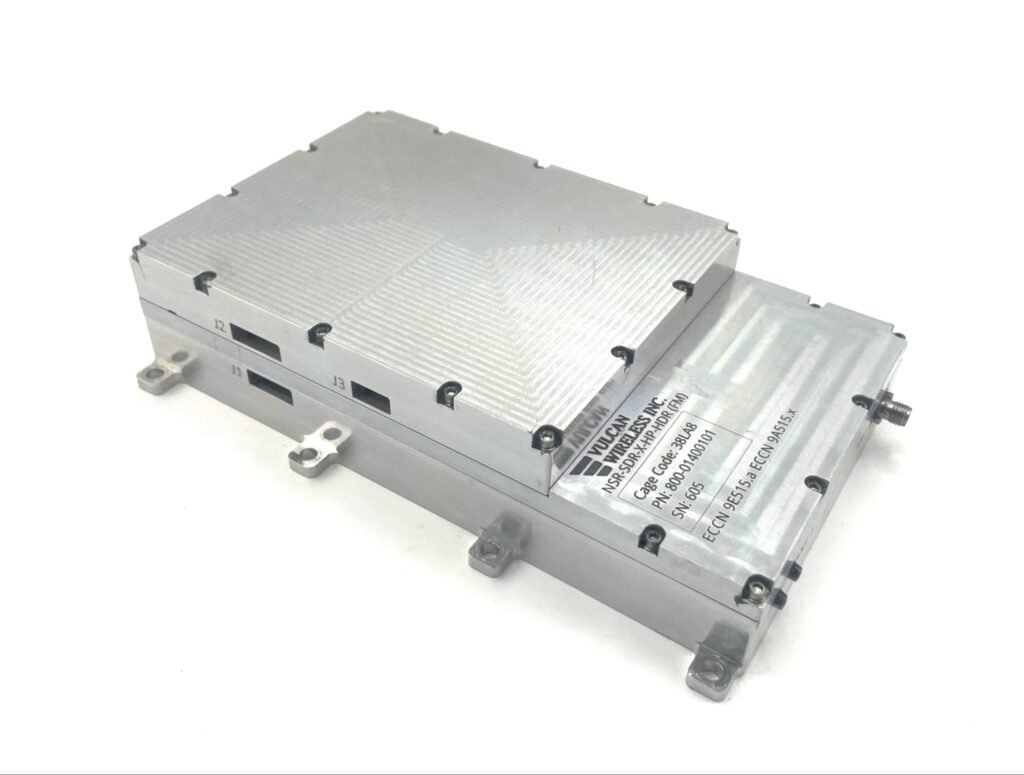

NSR-SDR-X/S-HP-HDR

Overview: The NSR-SDR-X/S-HP-HDR is a high power/high speed configurable software defined radio supporting multiple waveforms at X-Band transmit S-Band receive frequencies. Key Characteristics:

• Uplink Frequency: 2025 – 2115 MHz (X-Band Optional 7145 – 7750 MHz)
• Downlink Frequency: 7900 – 8400 MHz
• RF Power: 10 Watts Linear RF
• Downlink Data Rate: Up to 1 Gbps
• Downlink Modulation: DVB-S2
• Uplink Data Rate: 1 Kbps to 4 Mbps
• Uplink Modulation: BPSK (TC)
• Orbits: LEO, MEO, GEO, Cislunar/Lunar Applications
• Over the Air Reprogrammable

Options: AES-256 Encryption, Waveform Selection

• Direct to Earth
• PCM/PSK/PM Tone and PN Ranging (Standard, Deep Space, Interstellar Modes)
• DVB-S2

Mounting:

• Flanged
• Non-flanged
• DC Power: 28V

Size, Weight, and Power (SWAP):

• Dimensions: 113x171x42mm
• Mass: 1141 grams
• Power: <20 Watts

Capability Readiness:

• Technology Readiness Level (TRL): 7
• Manufacturing Readiness Level (MRL): 9
• Flight Heritage: Expected to fly 2026.

NSR-SDR-XS-HP-HDR Data Sheet
